Quick Specs
| Item |
Description |
| Product Type |
Fiber Optic Patch Cable |
| Connector Type |
LC to LC Duplex |
| Fiber Mode |
Multimode (MM) |
| Cable Length |
100 meters |
| Structure |
Duplex (Dual Fiber) |
| Application |
Data Center / LAN |
| Jacket Type |
PVC / LSZH optional |
| Performance |
Low loss, high stability |
Product Parameters
| Parameter |
Specification |
| Model Number |
473302A FUFAY |
| Fiber Type |
Multimode OM3 / OM4 compatible |
| Connector Type |
LC-LC Duplex |
| Connector Polish |
UPC / APC optional |
| Insertion Loss |
≤ 0.3 dB (typical) |
| Return Loss |
≥ 35 dB |
| Cable Length |
100 meters |
| Cable Diameter |
2.0mm / 3.0mm optional |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-40°C to +85°C |
| Durability |
≥ 1000 mating cycles |
| Compliance |
RoHS, IEC standards |
Product Overview

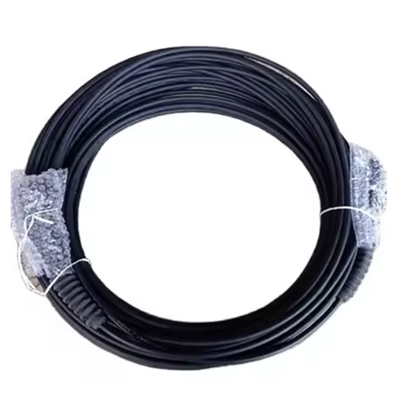

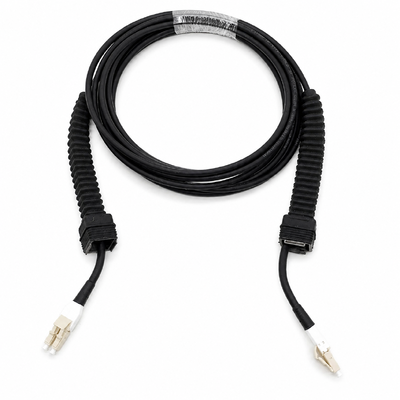

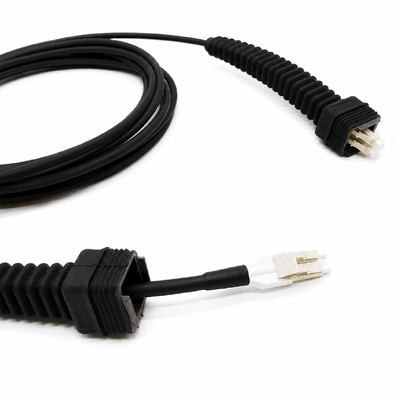

The 473302A FUFAY MM OD Fiber Optic LC-LC Duplex Patch Cable 100m is a high-performance multimode fiber solution designed for reliable and efficient data transmission in modern networking environments. It is engineered for long indoor runs in structured cabling systems, making it ideal for large-scale data centers, enterprise networks, and telecom infrastructure.
Featuring precision LC connectors on both ends, this duplex fiber cable ensures low insertion loss and stable optical performance even over extended distances. Its multimode design supports high-bandwidth applications such as 10G, 40G, and short-range 100G Ethernet links when deployed with OM3/OM4 infrastructure.
With a 100-meter reach, this cable is perfect for backbone connections between racks, cross-room links, and high-density networking environments requiring stable and scalable fiber connectivity.
Key Features
- LC-LC duplex high-density connectors
- Supports high-speed multimode transmission
- Low insertion loss for stable performance
- 100-meter long-distance indoor connectivity
- Compatible with OM3/OM4 network systems
- Durable jacket for enterprise environments
- RoHS compliant and environmentally safe
Applications
- Data center backbone cabling
- Enterprise LAN infrastructure
- Telecom switching systems
- Server-to-switch interconnects
- Storage network (SAN) connections
FAQ
Q1: What is the advantage of a 100m LC-LC multimode fiber cable?
A: It allows long-distance indoor connectivity between racks or rooms while maintaining high-speed and low-loss optical performance.
Q2: Can this cable support 10G or 40G Ethernet?
A: Yes, when used with OM3 or OM4 multimode fiber systems, it supports 10G, 40G, and short-distance 100G transmission.
Q3: Is LC-LC fiber cable compatible with Cisco and Huawei devices?
A: Yes, LC-LC duplex fiber cables are industry-standard and compatible with Cisco, Huawei, Juniper, and most networking equipment.
Q4: What is the difference between 50m and 100m fiber cables?
A: The main difference is transmission distance. 100m cables are used for larger installations and cross-room connectivity, while 50m is for shorter rack-to-rack links.
