Quick Specs
| Item |
Description |
| Form Factor |
QSFP28 |
| Data Rate |
100Gbps |
| Standard |
100GBASE-SR4 |
| Wavelength |
850nm |
| Fiber Type |
Multimode Fiber (MMF) |
| Max Distance |
70m (OM3), 100m (OM4) |
| Connector |
MPO/MTP |
| Power Consumption |
< 3.5W |
| Temperature Range |
0°C to 70°C |
| Application |
Data center, switch interconnect |
Parameter Table
| Parameter |
Value |
| Product Name |
QSFP-100G-SR4 |
| Form Factor |
QSFP28 |
| Interface Type |
MPO/MTP-12 |
| Optical Technology |
VCSEL 850nm |
| Lane Configuration |
4x25Gbps (Tx/Rx) |
| Modulation |
NRZ |
| Maximum Reach |
100m (OM4) |
| Protocol Support |
IEEE 802.3bm |
| DDM/DOM Support |
Yes |
| Hot Pluggable |
Yes |
| Compliance |
MSA Compliant |
Overview

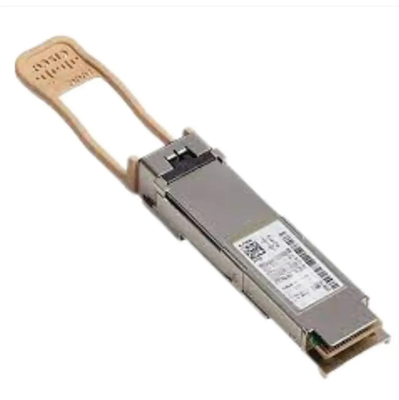

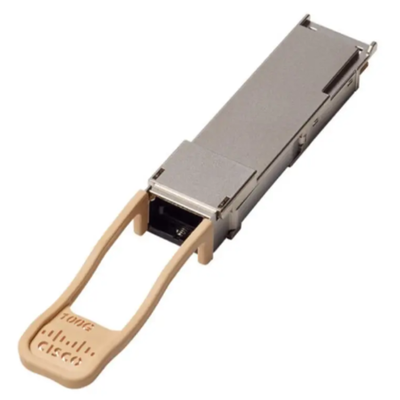

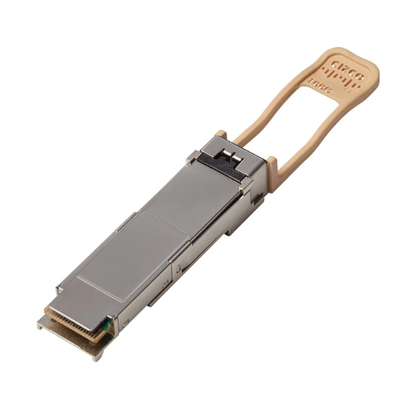

The QSFP-100G-SR4 100GBASE-SR4 QSFP28 optical transceiver module is designed to deliver high-performance short-reach optical connectivity for modern data centers and enterprise networks. It supports an aggregate data rate of 100Gbps over multimode fiber using four parallel lanes, each operating at 25Gbps.
Built on the 850nm VCSEL technology, this module provides low-latency, energy-efficient transmission for high-density switch-to-switch and server-to-switch connections. With MPO/MTP fiber connectors, it ensures simplified cabling and scalable deployment in high-speed environments.
The QSFP-100G-SR4 is widely used in cloud computing, enterprise core networks, and high-performance computing (HPC) clusters where reliable and high-bandwidth interconnects are essential.
Key Features & Benefits
- High-speed 100Gbps transmission for data center scaling
- Low power consumption under 3.5W for energy efficiency
- Hot-swappable QSFP28 form factor for easy deployment
- Supports multimode fiber infrastructure (OM3/OM4)
- Parallel 4x25G architecture for stable performance
- Fully compliant with IEEE 802.3bm standards
Applications
- Data center leaf-spine architecture
- 100G Ethernet switch interconnect
- High-performance computing clusters
- Enterprise backbone networks
- Cloud service provider infrastructure
FAQ
Q1: What is the difference between QSFP-100G-SR4 and LR4 modules?
A: SR4 uses multimode fiber (MMF) and is designed for short distances (up to 100m), while LR4 uses single-mode fiber (SMF) and supports long distances up to 10km.
Q2: Can QSFP-100G-SR4 work with existing 40G SR4 infrastructure?
A: In some cases, yes. It depends on switch compatibility and breakout configuration. Many networks support 100G SR4 backward compatibility via MPO cabling.
Q3: What fiber type is required for this module?
A: It requires OM3 or OM4 multimode fiber with MPO/MTP connectors.
Q4: Is this module compatible with Cisco, Huawei, and Juniper switches?
A: Yes, it is designed to be MSA-compliant and compatible with major networking brands when properly coded.
Q5: What warranty and support do you provide?
A: Typically, the module comes with a 1-year warranty, including replacement or technical support for compatibility and performance issues.
Why Choose This QSFP-100G-SR4 Module?
This transceiver offers a cost-effective upgrade path to 100G networking without requiring expensive single-mode fiber infrastructure. It is ideal for enterprises and data centers seeking high bandwidth, low latency, and simplified deployment.
